Product Description

Lonsdor JLR is a IMMO key programmer for Jaguar and LandRover Support All Key Lost,OBD program mode, and more than 50 software versions for KVM, 95% for Jaguar,Land Rover models can be programmed with this it.
Lonsdor JLR IMMO JLR Doctor Progarmmer by OBD
  • Free Update Online.
  • Newly Add KVM and BCM
  • Ship from UK, Fast Delivery, No Tax !
  • Program car keys for above 95% of Jaguar and Land Rover models.
  • Support more than 50 software versions for KVM, most of KVM no need soldering, can be programmed via OBD directly
  • Can support key programer by OBD for newest Jaguar and Land Rover after year 2016, part of Land Rover can support to year 2018
  • Currently (VPW protocols of Jaguar's old model is unsupported).
  • LONSDOR JLR IMMO Device software updates
    To update the device software, enter the site: http://u.lonsdor.com, to download update toolkit. Then according to instructions in the toolkit to update JLR_IMMO device program.

Lonsdor JLR-IMMO FAQs:
1. Lonsdor-jlr-immo-key-tool-user-manual
2. How-to-update-jlr-immo-device-program
3. Registration-and-activation-guide-for-jlr-immo-device
4. Guide-to-Install-jlr-immo-series-driver-on-window-10
5. Unbind Lonsdor JLR-IMMO Key Programmer in 6 Steps

Q: Does it support Jaguar F-TYPE smart key?
A: Yes

Q: JLR-IMMO supports OBD program mode?
A: Yes

Q: Supported for Land Rover 2017?
A: Yes, has supported by test

Q: If the old model Jaguar VPW protocols support?
A: It’s unsupported.

Q: What is Difference between JLR Mart Tool and Lonsdor JLR-IMMO key programmer?
A: You can check this article for details: Click Here

(1) LandRover 2008-: Immobilizer and smart key
(2) LandRover Discovery3: Immobilizer
(3) LandRover Freelander: Immobilizer and smart key
(4) LandRover Freelander2: Immobilizer and smart key
(5)LandRover Discovery4: smart key
(6) LandRover Evoque: smart key
(7) LandRover Defender: remote
(8) LandRover new models  KVM case’s software version: FK72
(9) LandRover new models  KVM case’s software version: HPLA
(10) Jaguar XF: smart key
(11) Jaguar SJ: smart key
(12) Jaguar F-TYPE: smart key
(13) Jaguar X-TYPE: Immobilizer
(14) Jaguar Soverign: Immobilizer
(15) Jaguar XJ6: Immobilizer
(16) Jaguar XJ8: Immobilizer
(17) Jaguar XJR: Immobilizer
(18) Jaguar XK: remote
(19) Jaguar XKR: remote
(20) Jaguar new models  KVM case’s software version: FK72
(21) Jaguar new models  KVM case’s software version: HPLA
Vehicle Immobilizer Smart key Remote
LandRover 2008-
LandRover new models  KVM case’s software version: FK72
LandRover new models  KVM case’s software version: HPLA
Jaguar XF
Jaguar new models  KVM case’s software version: FK72
Jaguar new models  KVM case’s software version: HPLA

KVM : FK72-14C104-BF
BCM : BJ32-14C184-AC
KVM : DPLA-14c104-CA (without reflash)
(working directly without degrade or update)

DPLA-14C104-C NEW
FK72-14C104-BA NEW
FK72-14C104-BB NEW
FK72-14C104-BC NEW
FK72-14C104-BD NEW
FK72-14C104-BE NEW
FK72-14C104-BF NEW
BH42-14C184-AA NEW


BJ32-14C184-AC NEW

How to register and activate LONSDOR JLR IMMO ?
(1) Please enter the site: http://u.lonsdor.com/jlrimmo/login

① Login
Users with an account of a Lonsdor tool: input account, password and verification code to login.
Users without  a Lonsdor account: click on [Register] and follow prompt messages to complete registration, then log in.
② Device bound to an account
After login success, check system prompts when device boots. Input the device No. & registration code as per prompts, and set up a password for the device. Click on [Submit] to bind to the device.
Lonsdor JLR IMMO Registration 3
Lonsdor JLR IMMO Registration 4
(2) After bind device successfully, enter the site: http://u.lonsdor.com
Lonsdor JLR IMMO Registration 6

① Click on the JLR-IMMO button, click on [Get activation code], confirm that device No. shown on the webpage is consistent with actual device No. Click on [Submit] to get activation code.
Lonsdor JLR IMMO Registration 7
Lonsdor JLR IMMO Registration 8
Lonsdor JLR IMMO Registration 9
② Input device No. on webpage to the device to activate it.
Lonsdor JLR IMMO Registration and Activation

Package includes:
1pc x USB cable
 LONSDOR JLR IMMO Packing list

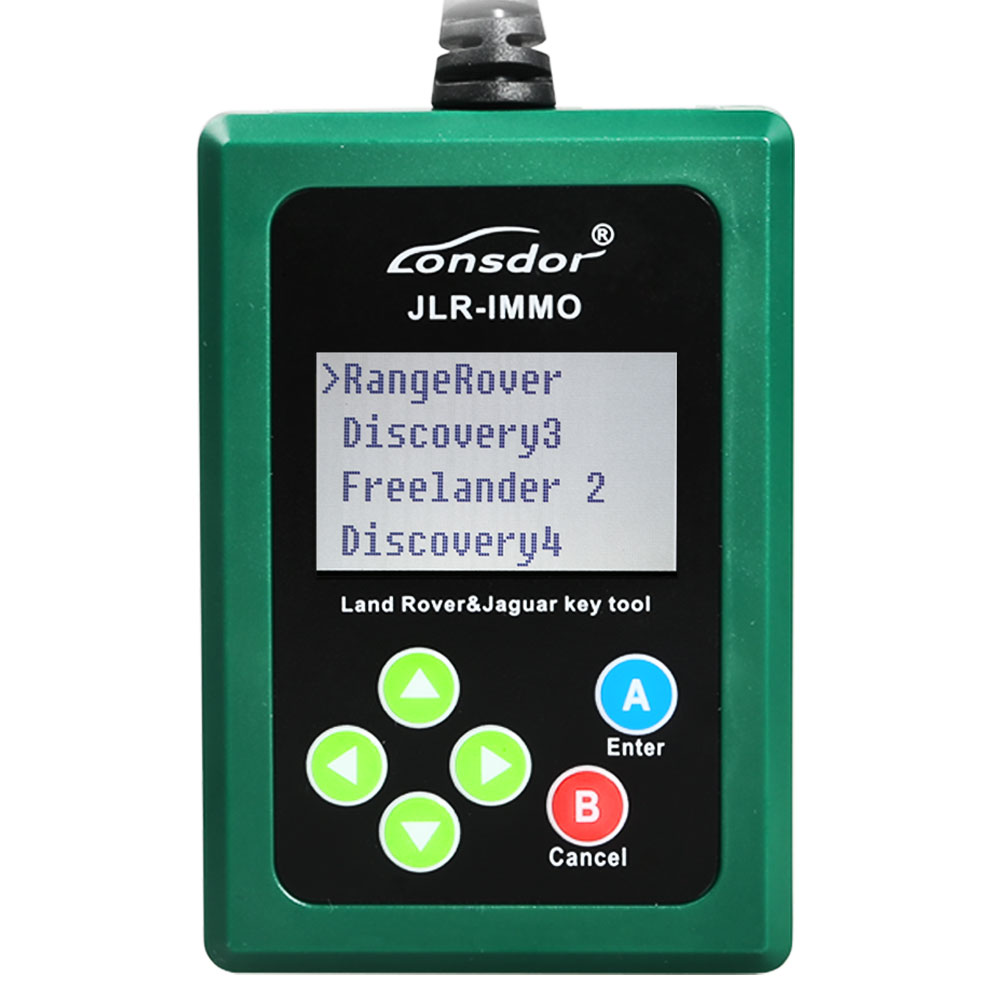

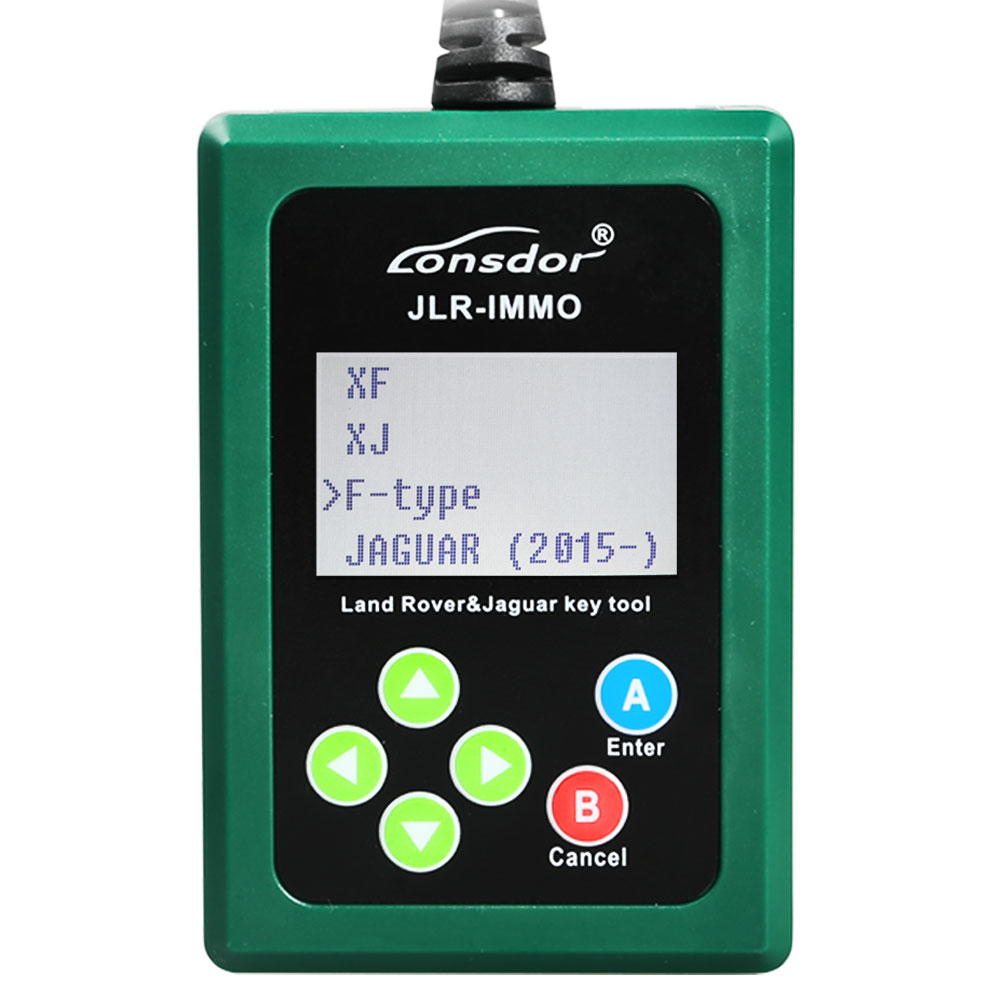

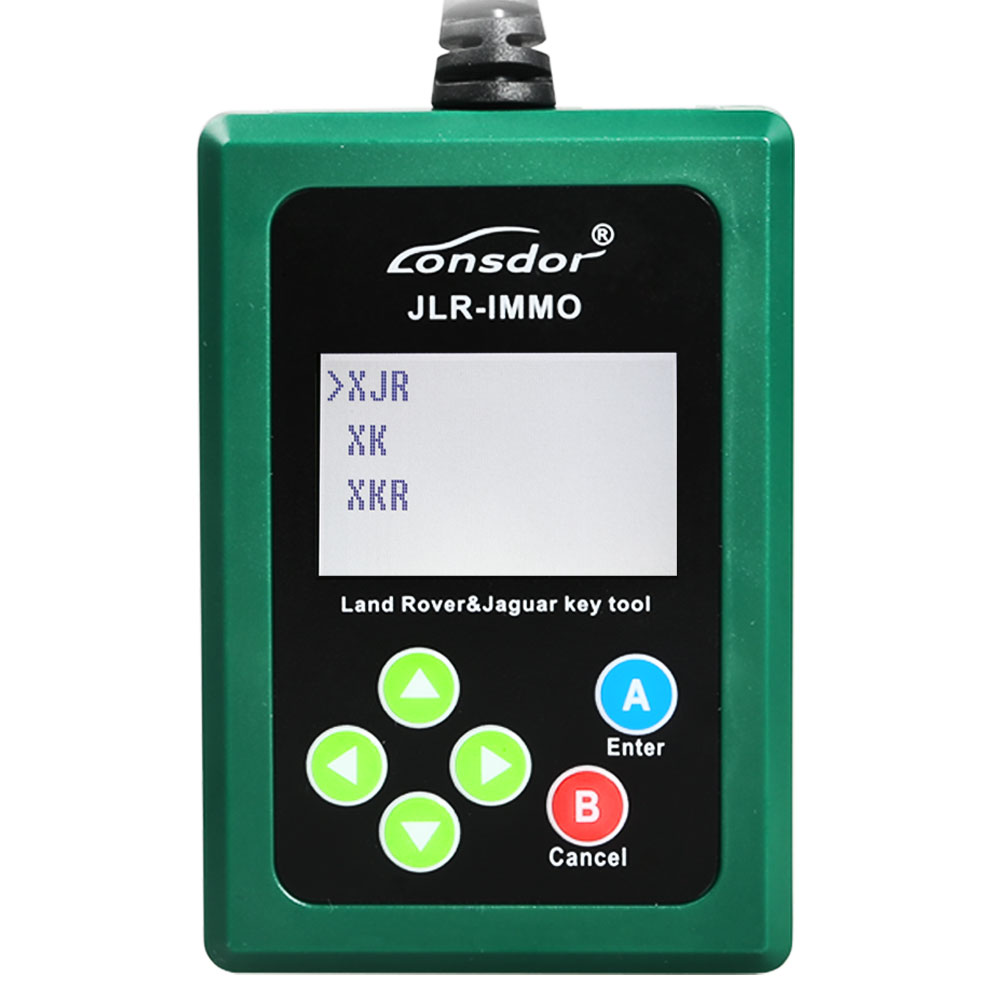

Londor JLR IMMO Menu Display:

 Shipment Option and Delivery Time In OBDiitool.co.uk

 1. Shipment from Shenzhen/ Hongkong warehouse

 1)DHL Shipping and Other Express Service:
  • Take About 5-7 working days
  • DHL will be the default delivery method
  • To help you clearance we will declare a lower price on the invoice to help clearance.
  • If address is remote area, you need pay remote freight 35 USD or we will ship by Normal Post or Yanwen/EMS/Aramex Express.
  • For some eu countries, there might be customs duty problem, if you have any special rquest on this, you can email to inform us your suggestions.
 2)Yanwen Express:
  • Take About 7-10 working days,No Tax Problem
  • Usually No Tax for European Countries or Remote Area . The tax was pre-paid, when package reached, there's no tax no extra fee for customers.
  • Due to high custom tax in European Countries,Like Germany, Greece,Romania,Sweden,France,etc, we will use Yanwen express as first option, if you will need faster DHL shipment, please contact us ,thank you.
 3)Normal Registered Airmail Post way
  • Take About 10-16 working days, Sometimes will be 20 days.
  • Registered Airmail Includes Netherlands Post, USPS Post, Singapore Post, Hongkong Post, etc
  • Order amount less than 150USD, and package weight less than 2KG will be sent by Registered airmail.
  • But if you feel it is really slow, and want us to send by DHL, you can choose "Premium Delivery" and pay for the extra shipping for express service. finally we will send it by DHL.
 2. UK, Amazon US, Canada, and Australia Warehouse Shipping:
  • Item title marked "Ship from UK
  • Take About 3-7 working days, Free TAX, faster shipping with cheaper price.
  • If US/UK Stock was sold out, your order will be shipped from China via DHL or YANWEN(No Tax).
  • We have stocked up hot sale items in UK, Amazon US and  Australia Warehouse, which is more convenient for you.
After-sale service:
  • We can offer you lifetime customer service and tech support.
  • If you have any problems, please provide error image or video to show the problem, and kindly describe it in detail;
  • Technician will try their best to help you solve the problem. If there are no solutions, you can return for a refund or get a new one for replacement.
For any question, please contact us at:
Autel MaxiCOM MK906BT

OBDSTAR MS80 Motorcycle Diagnostic Scan Tool
Items Ship from UK warehouse obdiitool.co.uk

Tech support

Lonsdor JLR IMMO JLR Doctor Progarmmer VS JLR Mart Tool
6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer
JLR Mart Tool VS Lonsdor JLR-IMMO key programmer
JLR Mart Tool


Need remove job. You need to use other devices (i.e VVDI Prog, Xprog) to read out the D-Flash and EEE data in the KVM, then use Mart tool to generate new key and data, finally write back to KVM.

Need to work with laptop.

For KVM keys with Number FK72 HPLA

Supports add key and program all keys lost

Don’t have detail car list.

No Update.

But very cheap. US$105.00.

Lonsdor JLR-IMMO (JLR doctor hardware OBD):


Stand alone. Don’t need laptop.

All done via OBD. Don’t need to remove KVM.

Supports extra odometer correction function.

Update online

Have full car list.

Supports add key and program all keys lost

**Lonsdor JLR will program all keys lost on software DPLA, but only add key to FK72 and HPLA


6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer

Lonsdor Dealer Service Center- instructions for unbinding Lonsdor JLR-IMMO Jaguar Land rover key programming device

Part 1: registration and login
Login website:http://dealer.lonsdor.com (can switch between English & Chinese)
Account password: created by marketing and sales staff when add dealers’ info. to IM backend system.
Dealer can input correct email address and password to login:
Enter main interface successful, your present products shows here (see below pic).
 Unbind Lonsdor JLR-IMMO
Part 2: select product
After select Lonsdor JLR-IMMO product, it skips to below interface:
 Unbind Lonsdor JLR-IMMO 3
Part 3: obtain unbind code
Check device PSN, which will shown on the back of device, or on the homepage; You can also enter menu【Device Information】to check it. The three PSNs are the same one.
Input the PSN to input box in above pic, click【submit】to obtain unbind code.
 Unbind Lonsdor JLR-IMMO 4

Part 4: unbind device

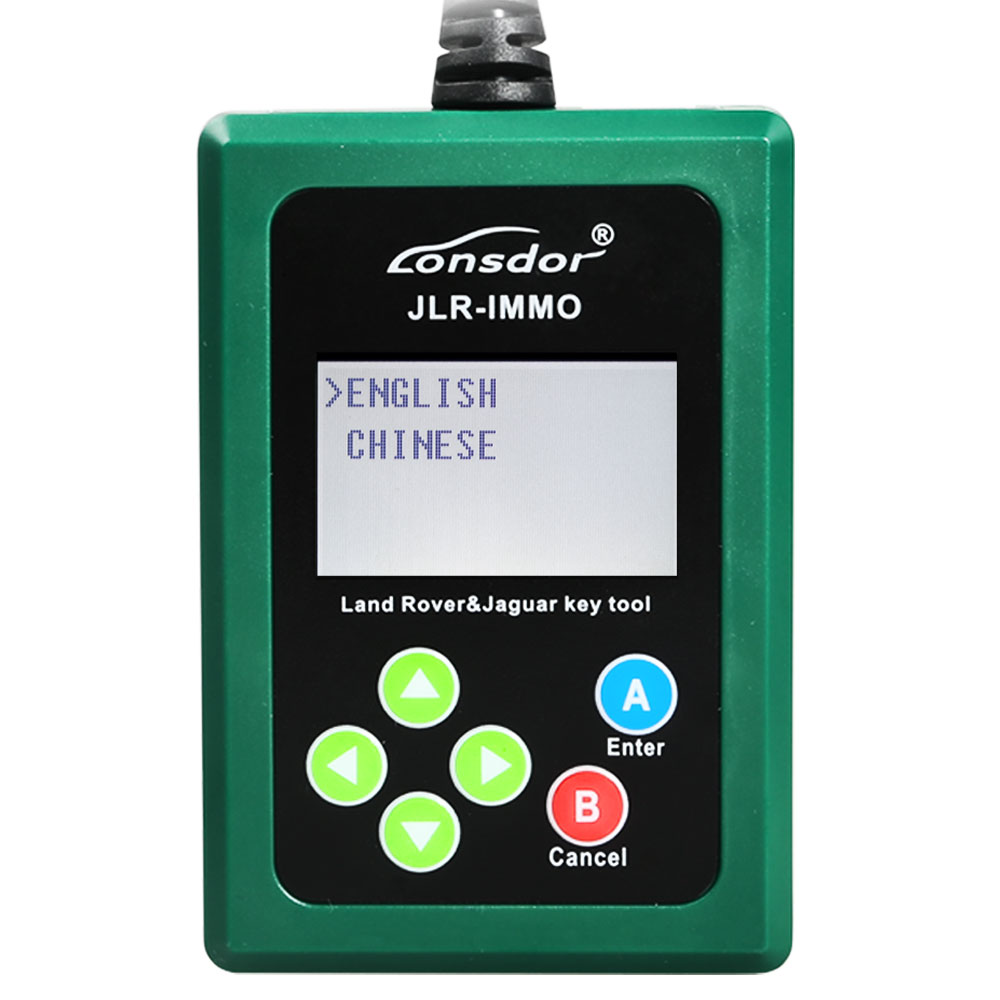

Reboot your device, and enter language selection interface (see below pic).
6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer 6
6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer 9
Press UP and DOWN (①) buttons on device at the same time, then press LEFT and Right buttons at the same time (see below pic).
6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer 10
The screen skips to “unbind code” interface, please input the unbind code obtained from dealer’s service center website (refer to below pic).
6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer 11
Press the device’s button A(Enter) to confirm.
6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer 12
Continue to press button A(Enter), enter unbinding instruction interface (refer to below pic).
6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer 13
Stay in this interface, and do not press A(Enter) for the time being. After finish the following operation steps, you can press A then.

Part 5 : unbind server data
(Following part 3)
After obtain unbind code, there is a registration code input box. According to prompt messages, please input here the registration code shown on the device’s interface (refer to the end of part 4).
6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer 14
After confirm the code is correct, click【unbind】, it prompts unbind successful.
6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer 15

Part 6:confirm to unbind JLR-IMMO
(Following part 4)
On unbinding instruction interface, press device’s button A(Enter) to confirm it’s unbound successful (see below pic).
6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer 16
Press button A(Enter), the device will reset and reboot, and enter homepage. Your device is unbound completely now.
6 Steps to Unbind Lonsdor JLR-IMMO Key Programmer 18
